Modular Diffusion Pipeline Builder

Loads and caches a 🧨 Diffusers pipeline once, so every other node in the flow can reuse it.

Category: ModularDiffusion/Pipeline

TL;DR

  • Build once, generate many. Place this node first; connect its pipeline output to every other Modular Diffusion node that needs weights (Generate Media Latent, VAE Encode/Decode, Create Noise, etc.).
  • Pick provider first. All other parameters (model repo, runtime knobs) regenerate based on this choice.
  • The pipeline is cached by a hash of its config. Changing a load-time parameter (model repo, quantization, LoRAs) rebuilds and re-caches; runtime parameters (prompt, steps) do not trigger a rebuild.
  • Output type: Pipeline Config.

Typical workflow position

[Pipeline Builder] → Create Noise Latents → Generate Media Latents → Decode Media Latent

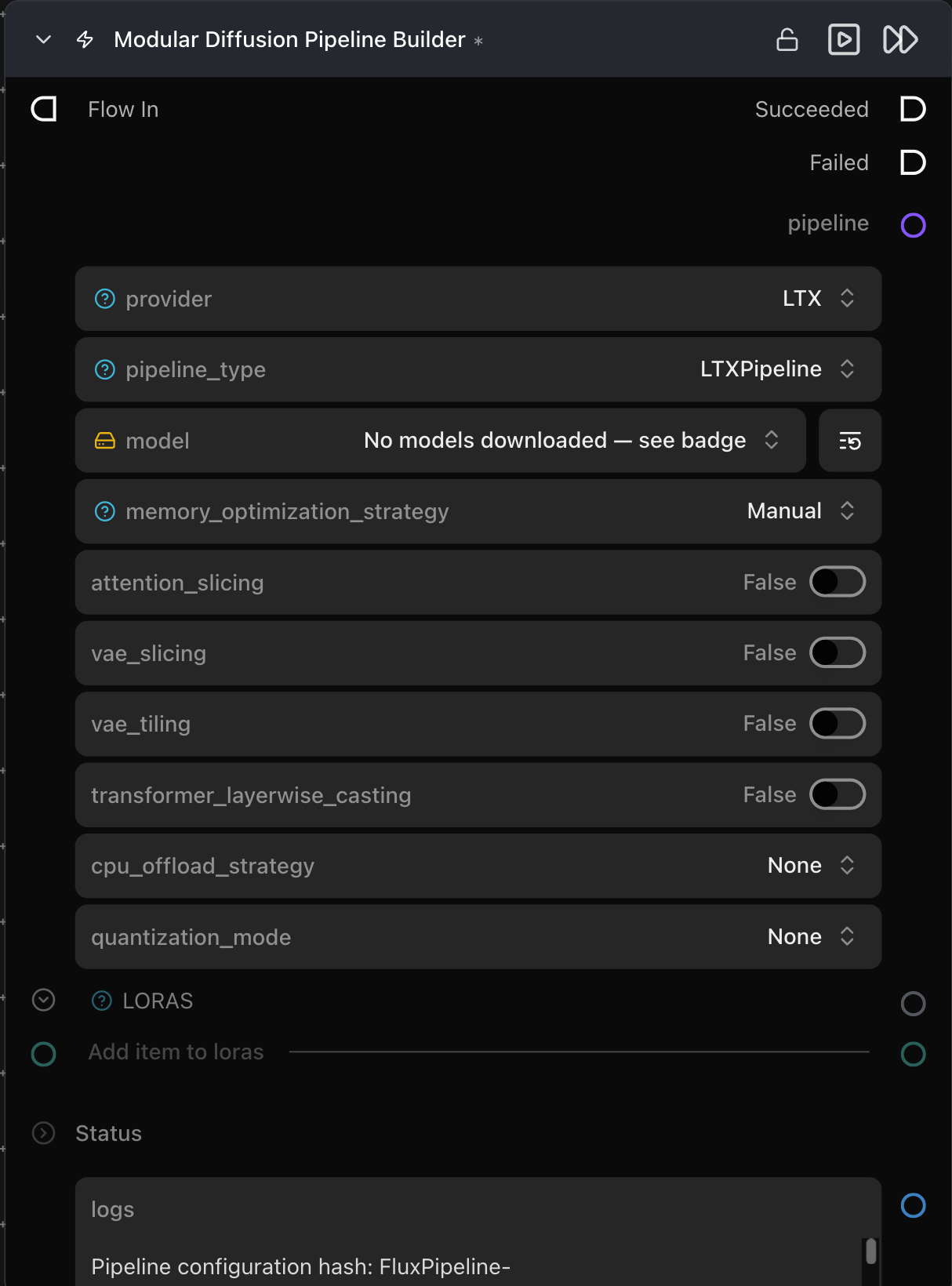

Node preview

Modular Diffusion Pipeline Builder

Inputs

Name Type Required Notes
loras loras No Connect one or more Load LoRA nodes. Stacked in connection order.

Outputs

Name Type Notes
pipeline Pipeline Config Cached pipeline artifact. Feed into every node that takes a pipeline input.
logs str Build log, including the resolved config hash.

Parameters

Pipeline selection (dynamic — these regenerate when provider changes)

Name Type Notes
provider choice Flux, Flux2, Stable Diffusion, Stable Diffusion 3, Qwen, Z-Image, HunyuanVideo 1.5, LTX, LTX2, WAN. Changing this swaps every parameter below.
pipeline_type choice Per-provider pipeline class (e.g. FluxPipeline, WanImageToVideoPipeline). Determines what the pipeline can do.
<model repo> HF repo picker Hugging Face repo ID. Diffusers-format only — single-file .safetensors checkpoints are not loaded directly.

Memory optimization

Name Type Default Notes
memory_optimization_strategy choice Manual Automatic hides the per-knob toggles below and uses sensible defaults per model.
attention_slicing bool False Cheap memory win, small speed hit.
vae_slicing bool False Decodes the latent in batches of 1; useful for large batch sizes.
transformer_layerwise_casting bool False Keeps the transformer in a lower precision and upcasts per layer during compute.
cpu_offload_strategy choice None Model (whole submodules) or Sequential (per-layer) — moves idle weights to CPU to free VRAM, trades inference speed.
quantization_mode choice None fp8 / int8 / int4 (via optimum-quanto / bitsandbytes). Shrinks transformer weights at the cost of some quality.

Enable only what you need — each option trades speed for memory.

Tips & pitfalls

  • Pipeline cache after restart. The cache lives in process memory only; the node re-resolves automatically on the next run.
  • Out of VRAM on load. The model weights exceed your available GPU memory. Try one or more of these in order of impact: set quantization_mode to int8 or int4, set cpu_offload_strategy to Model (moves idle submodules to CPU), or enable vae_slicing (reduces peak memory during decode). Each option trades some inference speed for lower VRAM usage.
  • LoRAs not applying. Check two things: (1) the LoRA was trained for the same model architecture as your chosen pipeline_type — a Flux LoRA will not work on a WAN pipeline; (2) the Load LoRA node is wired to the loras input on this node.
  • Set provider before configuring other parameters. Changing provider regenerates all parameters for the new model — connections are carried over where parameter names match, but values return to their defaults. Choosing the right provider upfront avoids repeating your setup.
