Latents Composite Mask

Pastes a source latent onto a destination latent at a given pixel offset, blended through an optional image mask.

Category: ModularDiffusion/Transform

TL;DR

  • Drop a source latent into a destination latent at (x_offset, y_offset). White mask pixels → source; black → destination.
  • Offsets are pixel-space; the node converts to latent space internally (÷ 8).
  • Enable resize_source to scale the source to the destination's spatial size before compositing.
  • Mask is automatically resampled to match the source latent.

Typical workflow position

Generate Latents (dest) ──┐
Generate Latents (src) ───┼─→ [Latents Composite Mask] → Generate Media Latents
Paint Mask (mask) ────────┘

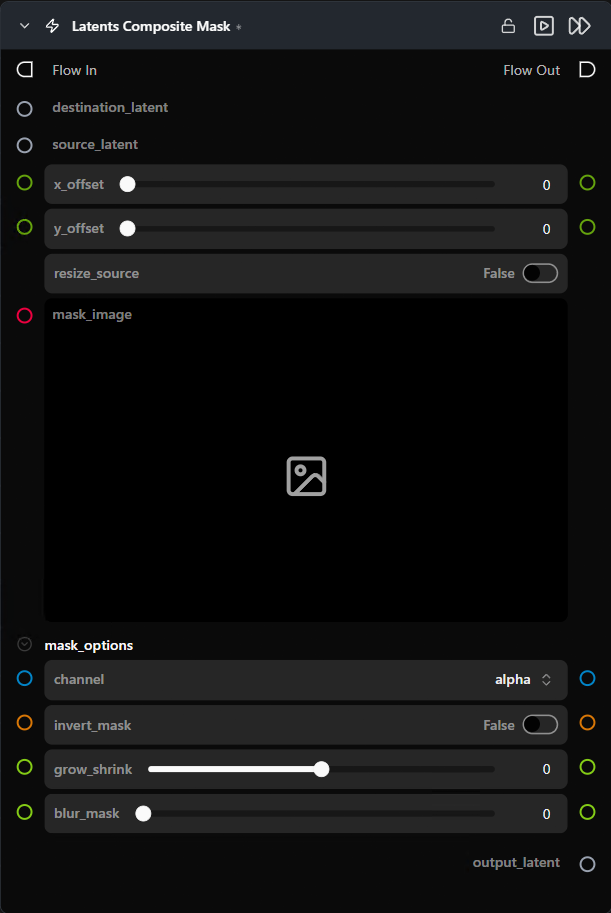

Node preview

Latents Composite Mask

Inputs

Name Type Required Notes
destination_latent LatentArtifact Yes Base canvas.
source_latent LatentArtifact Yes Latent to paste in.
mask_image ImageArtifact / ImageUrlArtifact No Blend mask. If omitted, the source replaces the destination wholesale within its placement region.

Outputs

Name Type Notes
output_latent LatentArtifact Destination with source composited in.

Parameters

Placement

Name Type Default Notes
x_offset int (pixels, 0–2000) 0 Horizontal placement (divided by 8 internally).
y_offset int (pixels, 0–2000) 0 Vertical placement (divided by 8 internally).
resize_source bool False Bilinearly resize source to match destination spatial size before compositing.

Mask options (collapsed by default)

Name Type Default Notes
channel choice alpha Which channel of mask_image to use as blend weight.
invert_mask bool False Swap source/destination regions.
grow_shrink float (-100..100) 0 Dilate (+) or erode (-) the mask edge.
blur_mask float (0..100) 0 Feather the mask edge.

Tips & pitfalls

  • Only the overlapping region is composited. If x_offset + source width extends beyond the destination canvas, the out-of-bounds portion is ignored; if source and destination don't intersect at all, the destination is returned unchanged.
  • Pixel offsets, not latent offsets. A 1024-px destination = 128 latent units. Offsets are in the bigger pixel space — the node divides by the VAE scale factor (8) internally.
  • Works for both 4D image latents and 5D video latents. The mask is broadcast across the temporal dimension.
  • Output inherits the destination's shape. Metadata is merged; on key conflicts the destination wins.
