Encode Media Latent

Runs the pipeline's VAE encoder on an image or video, producing a latent you can feed into denoising for Image-to-Image / Video-to-Video flows.

Category: ModularDiffusion/Encode\Decode

TL;DR

  • The input parameter is dynamic: image for image pipelines, input_video for video pipelines (LTX, LTX2, WAN etc). It swaps automatically when you connect a pipeline.
  • Latents are normalized and unpacked — they're shape-compatible with Create Noise Latents, so the latent math / composite nodes work on them directly.
  • Pair with add_noise=True on a downstream Generate Media Latents for classic Image-to-Image. The amount of noise added is controlled by start_step on that node: strength = 1 − (start_step / num_inference_steps). Examples with num_inference_steps=20:
    • start_step=0 → full noise (strength 1.0) — original image is ignored, behaves like Text-to-Image.
    • start_step=10 → half noise (strength 0.5) — balanced blend of original and generated.
    • start_step=18 → very little noise (strength 0.1) — result stays very close to the original image.

Typical workflow position

Load Image → [Encode Media Latent] → Generate Media Latents → Decode Media Latent

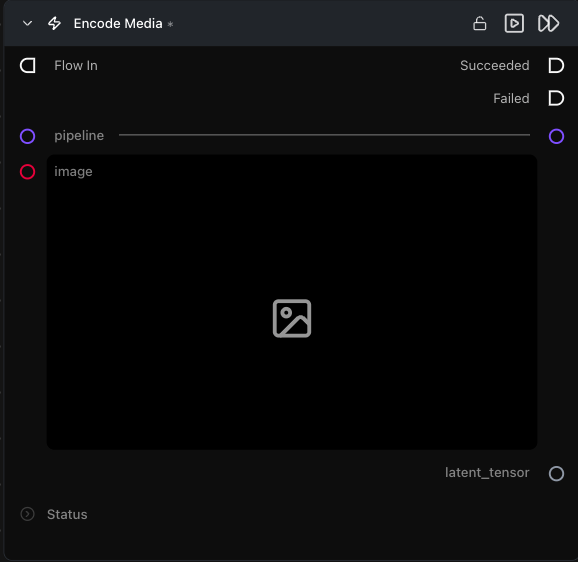

Node preview

Encode Media Latent

Inputs

Name Type Required Notes
pipeline Pipeline Config Yes Determines whether the input slot is image or input_video.
image ImageArtifact / ImageUrlArtifact When pipeline is image-only Source image.
input_video VideoArtifact / VideoUrlArtifact When pipeline is video Source video.

Outputs

Name Type Notes
latent_tensor LatentArtifact Encoded latent in the pipeline's canonical latent space.

Tips & pitfalls

  • The input slot adapts to the connected pipeline. Image pipelines (Flux, SD3, etc.) show an image input; video pipelines (LTX, LTX2, WAN, etc.) show input_video instead. Switching pipeline types replaces the slot — rewire the input after switching.
  • For fresh text-to-image or text-to-video, use Create Noise Latents instead. This node encodes an existing image or video into latent space for Image-to-Image or Video-to-Video workflows, not for generation from scratch.
