Latent Upsampler

Spatially upscales a latent tensor without leaving latent space — typically used between two Generate stages for a fast, high-resolution refinement pass.

Category: ModularDiffusion/Processing

TL;DR

  • Upsamples in latent space, so you avoid a costly decode → upscale → re-encode round trip.
  • provider picks the upsampler family.
  • Use between two Generate Media Latents nodes: low-res pass → upsample → high-res refinement pass.

Typical workflow position

Generate Media Latents (low-res) → [Latent Upsampler] → Generate Media Latents (refine) → Decode

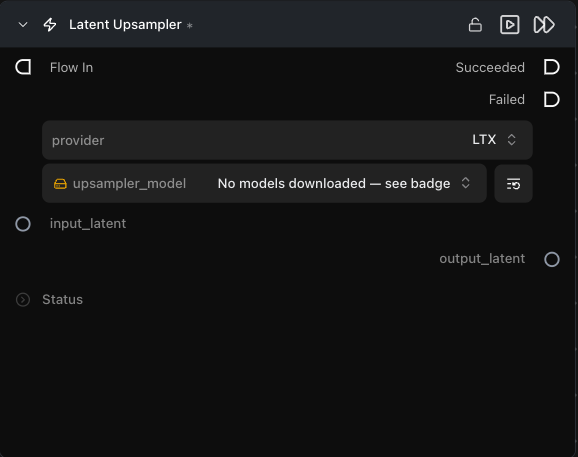

Node preview

Latent Upsampler

Inputs

Name Type Required Notes
input_latent LatentArtifact Yes Latent to upsample. Must be in the pipeline's canonical latent space (any Generate / Encode output qualifies).

Outputs

Name Type Notes
output_latent LatentArtifact Spatially-upscaled latent.

Parameters

Name Type Notes
provider choice Upsampler family (e.g. LTX2). Switching regenerates the model picker.
upsampler_model HF repo picker Hugging Face repo ID for the upsampler weights.

Tips & pitfalls

  • Latent-space upsamplers are family-specific. An LTX2 upsampler will not produce sensible output for an SDXL latent. Match the upsampler family to the latent's pipeline.
  • You almost always want a refinement Generate after upsampling. The upsampler increases resolution but doesn't denoise — pair it with a short follow-up Generate at low strength.
