ControlNet Pipeline

Wraps a built pipeline so it accepts ControlNet inputs at generation time.

Category: ModularDiffusion/Pipeline

TL;DR

  • Sits between the Pipeline Builder and Generate Media Latents — it re-wires the cached pipeline to a ControlNet variant.
  • Accepts a list of control_net configs (from one or more Configure ControlNet nodes). Stacked ControlNets are supported where the model allows it (e.g. Flux Union).
  • Output type: Pipeline Config — drop-in replacement for the base pipeline downstream.

Typical workflow position

Pipeline Builder → [ControlNet Pipeline] → Generate Media Latents → Decode Media Latent
Configure ControlNet ─┘
Configure ControlNet ─┘

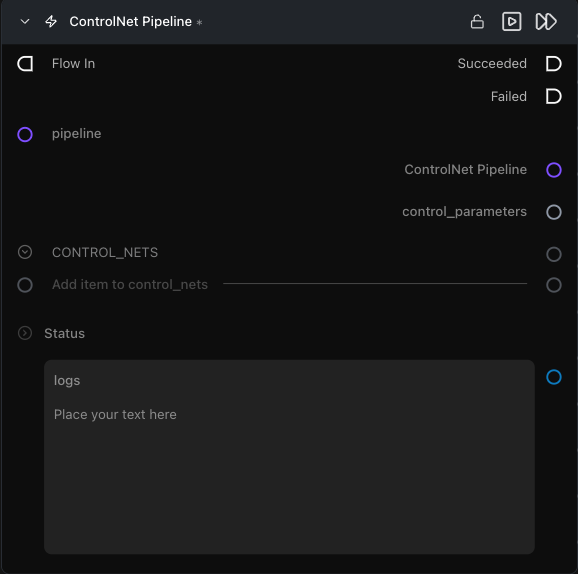

Node preview

ControlNet Pipeline

Inputs

Name Type Required Notes
pipeline Pipeline Config Yes From a base Pipeline Builder. Must not already be a ControlNet pipeline.
control_nets list[control_net] Yes One or more entries from Configure ControlNet. All must match the base pipeline's provider.

Outputs

Name Type Notes
controlnet_pipeline Pipeline Config Pipeline artifact with ControlNet wiring.
control_parameters control_parameters Pass-through of all connected ControlNet configs. Connect to the controlnet_parameters input on Generate Media Latents.
logs str Build log, including the resolved config hash.

Tips & pitfalls

  • Provider must match. Each ControlNet's provider must equal the base pipeline's provider — the node validates this before running.
  • Pipeline class compatibility. Not every base pipeline supports ControlNet stacking; the node validates the driver before running and surfaces which combination is unsupported.
  • Stack multiple ControlNets within a single node. Use multiple control_nets entries on one ControlNet Pipeline node rather than chaining two ControlNet Pipeline nodes — the second node will error if the input is already a ControlNet artifact.
  • Pipeline reuse ControlNet weights may be loaded for the selected control_nets; the base pipeline itself is reused from cache when available.
